MASAMUNE

tracheo

masamune
silb

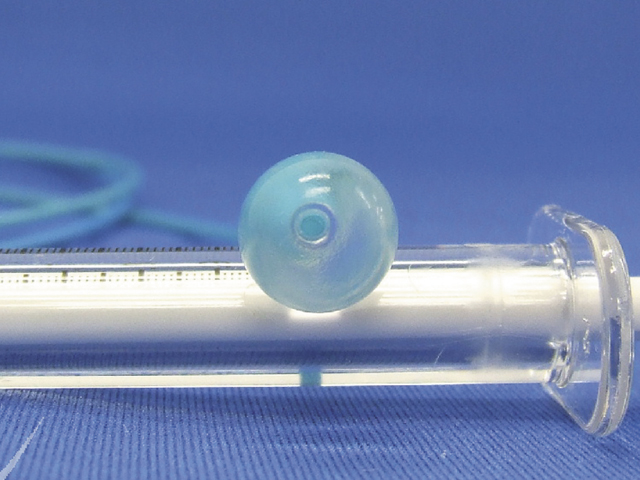

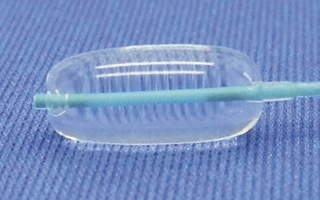

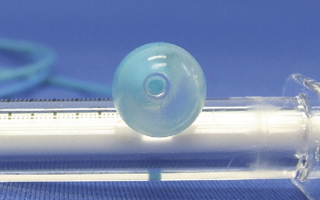

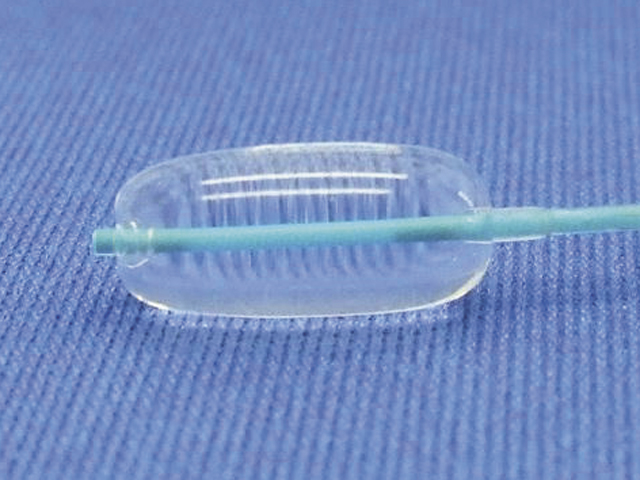

Micro Catheter for neuro surgery with a silicone balloon is a 2 way micro catheter that provides temporary occlusion. This corresponds to multipurpose operative technique since the inside diameter of the main lumen is secured.

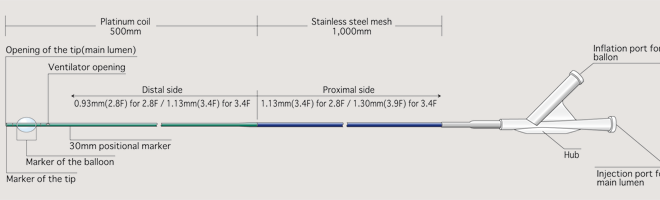

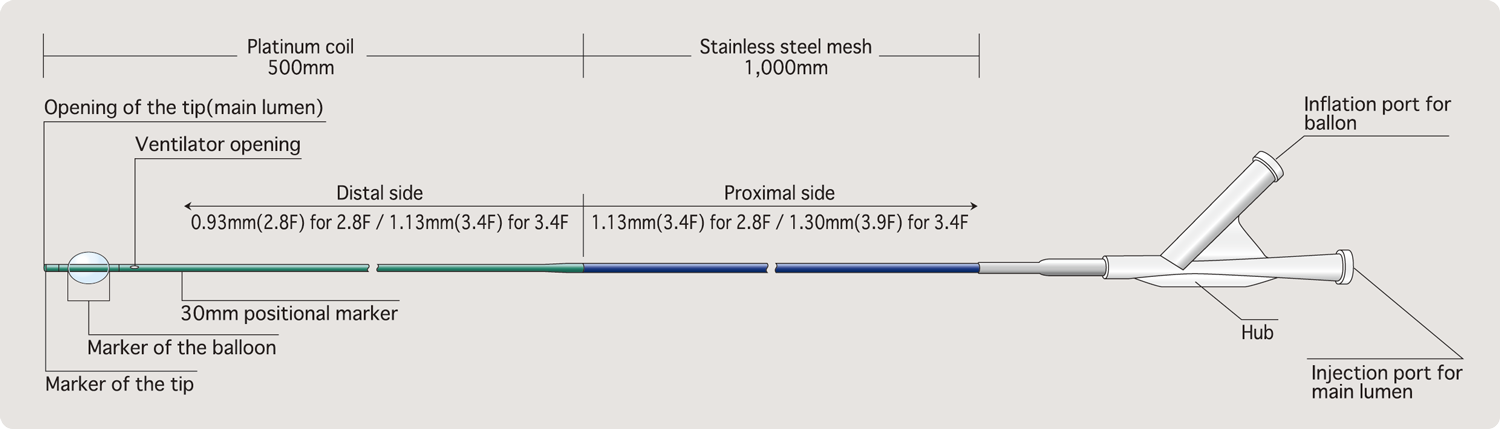

Specifications

Cello Balloon Guide Catheter Ordering Information
Reference No. Length of theTip part Balloon length Total length I.D. (mm) Shaft diameter
N8112451 15 mm 10 mm 1500 mm 0.4 mm
(0.015")		 0.93/1.13 mm
(2.8F/3.4F)
N8122451 8 mm
N8132451 2 mm
N8113451 15 mm 10 mm 0.5 mm
(0.021")		 1.13/1.30 mm
(3.4F/3.9F)
N8123451 8 mm
N8133451 2 mm

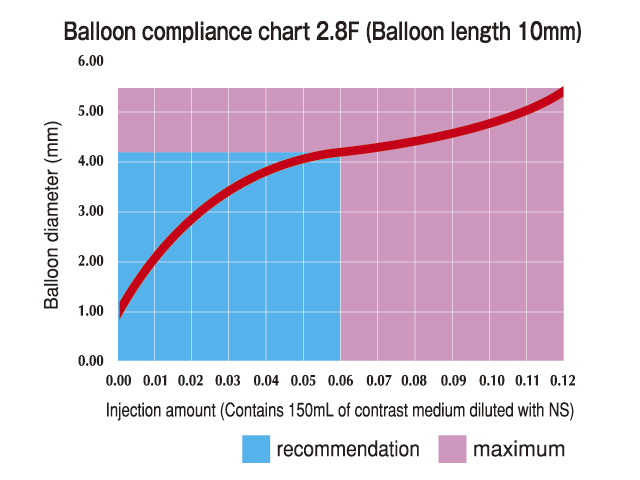

Comformable
maximum guide
wire diameter		 Comformable
minimum guide
Catheter I.D.		 injection
amount/diameter
(recomendation)		 injection
amount/diameter
(maximum)		 Anti-pressure
of main lumen
0.3mm (0.012") 1.3mm (0.05") 0.06mL / 4.0mm 0.12mL / 5.5mm 2.07Mpa
(300PSI)
0.46mm (0.018") 1.6mm (0.063") 0.10mL / 6.0mm 0.15mL / 7.0mm
